Product Description

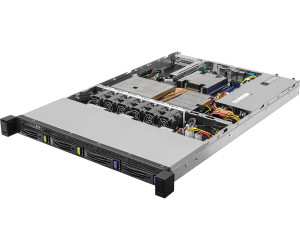

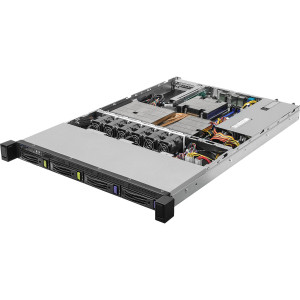

- 1U Rackmount with 1+1, 80-PLUS Platinum, 650W Slim PSU
- Single Socket AM5 (LGA 1718), supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors
- 4 DIMM slots (2DPC), supports DDR5 ECC/non-ECC UDIMM
- 2 Hot-swap 3.5" SATA or 2 x 2.5" NVMe** (PCIe4.0 x4)* drive bays
- 2 Hot-swap 3.5" SATA drive bays
- 1 FHHL PCIe4.0 x16
- Supports 1 M.2* (PCIe5.0 x4), 1 M.2 (PCIe4.0 x4)
- 2 RJ45 (1GbE) by Intel® i210
- 1 HDMI, 1 DisplayPort
- Remote Management (IPMI)
Specifications
| System | |
| Form Factor | 1U Rackmount |
| Dimensions | 676.5 x 438 x 43.4 mm (26.6'' x 17.2'' x 1.7'') |
| Support Motherboard | B650D4U/1U4L2E |
| Front Panel | |
| Buttons | Power, System Reset |
| LEDs | Power, HDD Activity, LANs, System Event |
| I/O Ports | 2 Type-A (USB3.2 Gen1) |
| External Drive Bay / Storage | |
| Front Side Drive Bay | 2 Hot-swap 3.5" SATA or 2 x 2.5" NVMe** (PCIe4.0 x4)* drive bays 2 hot-swap 3.5" SATA drive bays **Hot-swap isn't supported for NVMe devices |
| Internal Side | M2_1* (PCIe5.0 x4), supports 2280/2242 form factor [CPU] M2_2 (PCIe4.0 x4), supports 2280/2242 form factor [FCH] *M2_1 is occupied for NVMe bay_1 |
| Power Supply | |
| Type | 1+1 Slim PSU |
| Output Watts | 650W |
| Efficiency | 80-PLUS Platinum |
| AC Input | 100-240Vrms, 50/60Hz |
| System Fan | |
| Fan | 6 PWM Hot-swap 40x56 mm fans |
| Processor System | |
| CPU | Supports AMD EPYC™ 4005/4004 and AMD Ryzen™ 9000/8000/7000 Series Processors |
| Socket | Single Socket AM5 (LGA 1718) |
| Thermal Design Power | Up to 170W |
| Chipset | AMD B650 |
| System Memory | |
| Supported DIMM Quantity | 4 DIMM slots (2DPC) |
| Supported Type | DDR5 288-pin ECC/non-ECC UDIMM |
| Max. Capacity per DIMM | 48GB |
| Max. DIMM Frequency | 5600 MHz (1DPC); 3600 MHz (2DPC) |
| Voltage | 1.1V |
| PCIe Expansion Slots | |
| PCIe x 16 | Rear: 1 FHHL PCIe4.0 x16 |
| Ethernet | |
| Additional Ethernet Controller | Intel® i210: 2 RJ45 (1GbE) |
| Server Management | |
| BMC Controller | ASPEED AST2600 |
| Dedicated IPMI LAN | 1 Realtek RTL8211F for dedicated management GLAN |
| Graphics | |
| Controller | ASPEED AST2600: 1 DB15 (VGA), 1 (15-pin) header AMD Processors with Graphics: 1 HDMI, 1 DisplayPort |
| Rear I/O | |
| UID Button/LED | 1 UID button w/ LED |
| Video Port | 1 DB15 (VGA), 1 DisplayPort, 1 HDMI |
| Serial Port | 1 DB9 (COM) |
| USB 3.2 Gen1 Port | 4 Type-A (USB3.2 Gen1) |
| RJ45 | 2 RJ45 (1GbE) 1 dedicated IPMI |
| System BIOS | |
| BIOS Type | AMI UEFI BIOS; 256Mb (32MB) SPI Flash ROM |
| BIOS Features | Plug and Play, ACPI 6.4 compliance wake up events, SMBIOS 3.5 |
| Hardware Monitor | |
| Temperature | CPU, DDR, MB, Card Side, Chipset, 10G LAN, M.2 slot |
| Fan | Fan Tachometer, Multi-Speed Control, CPU Quiet Fan (Allow Chassis Fan Speed Auto-Adjust by CPU Temperature) |
| Voltage | VOLT_3VSB, VOLT_5VSB, VOLT_P0_VCORE, VOLT_P0_VSOC, VOLT _VMEM, VOLT _VMISC, VOLT_1.8V_PT21, VOLT_VSUS10, VOLT_VDD10, VOLT_V10_PHY_DIG, VOLT_VDD_1P8, VOLT_MD_VDDO, VOLT_BAT, VOLT_3V, VOLT_5V, VOLT_12V |
| Environment | |
| Temperature | Operating temperature: 10°C ~ 35°C / Non-operating temperature: -40°C ~ 70°C |
| Humidity | Non-operating humidity: 20% ~ 90% (non-condensing) |
