Product Description
- 8 x 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ Injector
- 2 X 100/1000BASE-X mini-GBIC/SFP slots for SFP type auto detection
- Supports PoE power up to 36 watts for each PoE port
- Circuit protection prevents power interference between ports
- Supports ESD 6KV DC Ethernet protection
- PoE management features
- Compact size with fixed wall-mounted, magnetic wall-mounted or DIN-rail design and IP30 metal case
- Supports -20 to 70 degrees C operating temperature
- 48V~56V DC wide power input with polarity reverse protect function
Wall-mount PoE Managed Switch with Advanced L2+/L4 Switching and Security
PLANET WGS-5225-8P2SV is an Industrial Wall-mount PoE Managed Switch with LCD Touch Screen featuring PLANET intelligent PoE functions to improve the availability of industrial applications. It provides IPv6/IPv4 dual stack management and built-in L2+/L4 Gigabit switching engine along with eight 10/100/1000BASE-T ports featuring 36-watt PoE and two additional 1000BASE-X SFP ports. With a total power budget of up to 240 watts for different kinds of PoE applications, and featuring networking speed and operating temperature ranging from -20 to 70 degrees C in a compact but rugged IP30 metal housing, the WGS-5225-8P2SV is an ideal solution to meet the demand for the following network applications:
ÛÛÐÊ Building/Home automation network
ÛÛÐÊ Internet of things (IoT)
ÛÛÐÊ IP surveillance

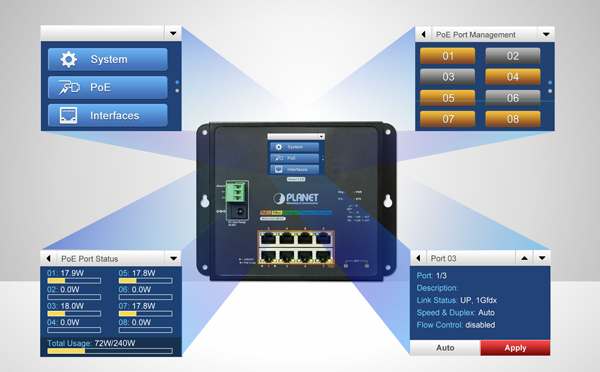

Intuitive LCD Control
The WGS-5225-8P2SV comes with an intuitive touch panel on its front panel that facilitates the Ethernet PoE PD management that greatly promotes management efficiency in large-scale networks, such as enterprises, hotels, shopping malls, government buildings, and other public areas. It also features the following special management and status functions:
ÛÛÐÊ IP address, VLAN and QoS configuration
ÛÛÐÊ PoE management and status
ÛÛÐÊ Port management and status, and SFP information
ÛÛÐÊ Troubleshooting: cable diagnostic and remote IP ping
ÛÛÐÊ Maintenance: reboot, factory default and save configuration

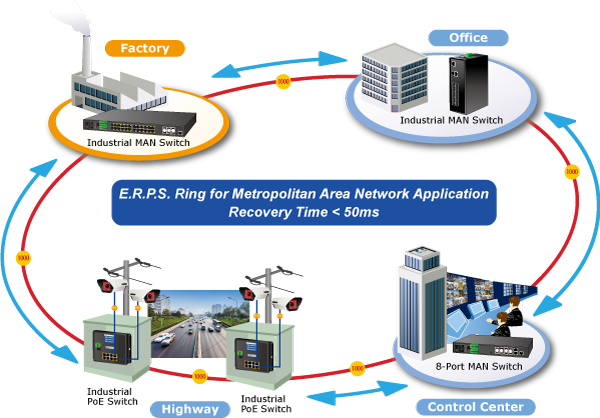

Redundant Ring, Fast Recovery for Critical Network Applications
The WGS-5225-8P2SV supports redundant ring technology and features strong, rapid self-recovery capability to prevent interruptions and external intrusions. It incorporates advanced ITU-T G.8032 ERPS (Ethernet Ring Protection Switching) technology, Spanning Tree Protocol (802.1s MSTP), and dual power input system into customer’s industrial automation network to enhance system reliability and uptime in harsh factory environments. In a certain simple ring network, the recovery time of data link can be as fast as 20ms.

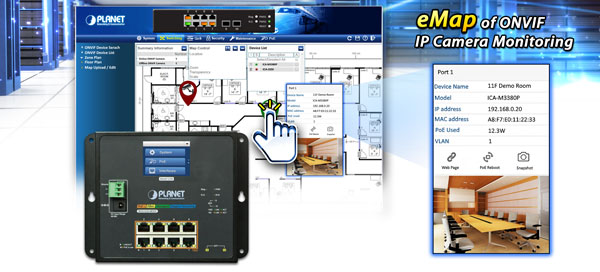

Convenient and Smart ONVIF Devices with Detection Feature
PLANET has newly developed an awesome feature -- ONVIF Support -- which is specifically designed for co-operating with video IP surveillances. From the WGS-5225-8P2SV’s GUI, you just need one click to search and show all of the ONVIF devices via network application. In addition, you can upload floor images to the switch and can remotely monitor or inspect an assembly line. Moreover, you can get real-time surveillance information and online/offline status; the PoE reboot can be controlled from the GUI.
