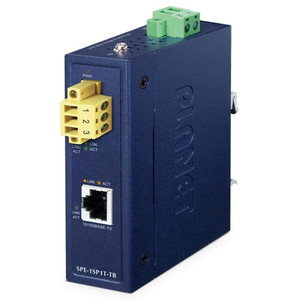

Terminal Block Single Pair Ethernet to 10/100BASE-TX Industrial Media Converter

Bridging Single Pair Ethernet to Standard Industrial Networks

PLANET SPE-1SP1T / SPE-1SP1T-TB is a 1-Port 10BASE-T1L to 1-Port 10/100BASE-TX Single Pair Ethernet Media Converter, designed to bridge industrial 10BASE-T1L (IEEE 802.3cg) networks with standard Ethernet infrastructure. As Industry 4.0 drives the need for extending Ethernet connectivity to the edge of the factory floor — down to individual sensors and actuators — Single Pair Ethernet (SPE) has emerged as the ideal solution, using just one twisted pair to carry Ethernet signals over distances up to 1,000 meters, far exceeding the reach of conventional Ethernet cabling (100 meters).

Sharing the same compact form factor, the SPE-1SP1T and SPE-1SP1T-TB differ only in their 10BASE-T1L connector type: the SPE-1SP1T features an IP-20 IEC 63171-2 industrial SPE connector, while the SPE-1SP1T-TB is equipped with a 3-Pin terminal block interface for direct wiring, making it ideal for industrial control panels and cabinets. The SPE-1SP1T and SPE-1SP1T-TB allow existing switches, PLCs, and industrial computers to connect to SPE-based field devices without any network architecture changes, significantly reducing cabling costs and complexity while accelerating IIoT deployment.

Long-Distance SPE Transmission

The SPE-1SP1T and SPE-1SP1T-TB supports 10BASE-T1L (IEEE 802.3cg), enabling Ethernet transmission over a single twisted pair for distances up to 1,000 meters — 10 times farther than conventional Ethernet cabling. This extended reach eliminates the need for repeaters in large industrial facilities, allowing Ethernet connectivity to reach remote sensors, actuators, and field devices that were previously out of range for standard networking, while significantly simplifying cable planning in expansive plant layouts.

Industrial Automation & Process Control

In modern smart factories, the SPE-1SP1T / SPE-1SP1T-TB serves as a critical bridge between legacy Ethernet infrastructure and next-generation 10BASE-T1L field devices. As Industry 4.0 initiatives push for real-time data collection directly from sensors, actuators, and PLCs on the production line, traditional fieldbus and 4-20mA analog connections often struggle to keep pace with the bandwidth and integration demands of modern manufacturing execution systems (MES) and SCADA platforms.

By converting 10BASE-T1L signals to standard 10/100BASE-TX, the SPE-1SP1T allows existing industrial switches and computers to directly access edge devices over a single twisted pair, extending reliable connectivity up to 1,000 meters without additional repeaters. Its IP30 metal housing, wide operating temperature range (-40°C to 75°C), and flexible DIN-rail or wall-mount installation make it well-suited for harsh factory floor environments, control cabinets, and machine-level deployments where space and environmental resilience are equally critical. This enables manufacturers to modernize their connectivity architecture incrementally, without the cost and disruption of a full network overhaul.

Building Automation & Facility Management

Beyond the factory floor, the SPE-1SP1T / SPE-1SP1T-TB also addresses the growing connectivity needs of smart building infrastructure, where HVAC systems, lighting controls, access control panels, and energy monitoring sensors are increasingly distributed across large facilities. In many commercial buildings, RS-485 (paired with BACnet MS/TP or Modbus RTU) has long served as the standard for connecting room sensors and controllers — reliable and low-cost but limited in bandwidth and IT integration.

The SPE-1SP1T / SPE-1SP1T-TB's single twisted-pair transmission over distances up to 1,000 meters can directly reuse the same 2-conductor cabling already installed for RS-485 or LON, avoiding the cost and disruption of rewiring in retrofit projects. Combined with its wide DC input range (9-48V) and compact form factor, the converter can be flexibly deployed within ceiling spaces, utility closets, or equipment racks — helping facility managers reduce installation costs while enabling the kind of granular, real-time monitoring that modern energy management and building automation systems require.
