Product Description

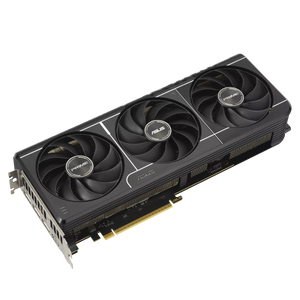

The ASUS Prime GeForce RTX™ 5070 Ti 16GB GDDR7 (Model: PRIME-RTX5070TI-16G) is a high-performance graphics card built on NVIDIA’s advanced 50-series architecture. It features a utilitarian, matte black aesthetic optimized for Small Form Factor (SFF) cases without compromising on cooling efficiency.
Key Specifications
- Graphics Engine: NVIDIA GeForce RTX 5070 Ti
- CUDA Cores: 8,960
- Video Memory: 16GB GDDR7 with a 256-bit interface
- Memory Speed & Bandwidth: 28 Gbps speed providing up to 896 GB/s total bandwidth
- Engine Clock: 2,452 MHz Boost Clock (Note: The standard version has a 2,452 MHz boost, while the factory-overclocked "O16G" edition boosts up to 2,497 MHz)
- Bus Standard: PCI Express 5.0
- AI Processing Power: Up to 1,406 AI TOPS
- Display Outputs: 1x HDMI 2.1b and 3x DisplayPort 2.1b (Supports up to 8K digital resolutions)
Core Features & Design
- Enthusiast SFF-Ready: Designed to conform to standard Small Form Factor dimensions, making it compatible with a wide array of compact chassis.
- 2.5-Slot Cooling System: Packed with three Axial-tech fans, dual-ball fan bearings, a phase-change GPU thermal pad, and a heavily vented backplate to keep operational noise down and prevent thermal throttling.
- 0dB Technology: The fans fully stop when the GPU core falls below 50°C, providing silent operation during light computing tasks or low-load gaming.
- Dual BIOS Support: Built-in physical switch allowing you to seamlessly swap profiles between "Performance Mode" (prioritizing lower temperatures) and "Quiet Mode" (prioritizing minimal noise).
- Power Requirement: Uses a single 16-pin (12VHPWR) power connector and requires a minimum 750W power supply.
