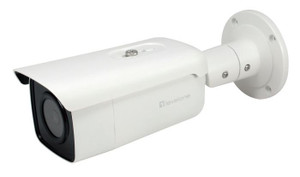

Product Description
- 8-Megapixel high-definition resolution
- Video compression: H.264/H.265
- Supports 4.3X optical zoom
- Features WDR (Wide Dynamic Range) to enhance visibility under extremely bright or dark environments
- Vandal-proof IK10-rated housing
- Weatherproof IP67-rated housing
- Built-in infrared LEDs for night viewing up to 60m
- Built-in Micro SDHC/SDXC card slot for local storage
| Features 1. | |
|---|---|
| Features. | Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception Smart Event: Face detection,Line crossing detection, intrusion detection (support alarm triggered by specified target types (human and vehicle)) Linkage: Upload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture |
| Miscellaneous. | |
| 2-way audio. | Yes |
| DI/DO. | Yes |
| IR LED for night vision. | Yes |
| Max. Resolution. | 8 Megapixels |
| Resistance. | Weatherproof |
| IP Camera series. | GEMINI |
| Camera Type. | Bullet |
| Zoom type. | Motorization |
| PoE Supported. | Yes |
| System Specifications. | |
| Angle of view (°). | FOV 108° to 30°, vertical FOV 56° to 17°, diagonal FOV 131° to 35° |
| Audio format. | G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Image sensor. | 1/2.8" Progressive Scan CMOS |
| Indicators. | Powe /Link Act |
| IR cut filter. | Yes |
| IR range. | Up to 60 Meter |
| Lens. | Motorized lens, 2.8 to 12 mm |
| Minimum illumination (lux). | Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR |
| Mount. | Wall mount |
| Port Configuration. | RJ-45, DI/DO (terminal block), Audio In/Out (terminal block) |
| Power consumption. | 12 VDC ± 25%, 1.08 A, max. 13 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3at, Class 4, 42.5 V to 57 V, 0.36 A to 0.27 A, max. 15 W |
| Power supply included. | No |
| Resolution. | Main Stream 50 Hz: 20 fps (3840 × 2160) 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 20 fps (3840 × 2160) 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) |
| Shutter time. | 1/3 s to 1/100,000 s |
| Standard. | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets |
| Supported storage capacity. | 256 GB |
| Video format. | H.265/H.264/MJPEG |
| Weatherproof rating. | IP67 |
| Others. | |
| Approval and Compliance. | CE/FCC/UL |
| Compatibility. | Onvif |
| Operating humidity. | 5% RH ~ 95% RH |
| Operating temperature. | -30°C ~ 60°C |
| Supported browsers. | Plug-in required live view: IE 10, IE 11,Edge Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+, Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Compatible operating systems. | Ooption accessory Mounting Kit : CAS-7303 Pole Mount CAS-7307 Corner mount CAS-7311 Junction Box CAS-7312 Power intake box |
| Storage humidity. | 5% RH ~ 95% RH |
| Storage temperature. | -30°C ~ 70°C |
| Package Contents. | Screw Kit QIG |
| General. | |
| Color. | White |
| EAN. | 4015867228654 |
| Model Number. | FCS-5095 |
| Physical Specifications. | |
| Dimensions (W x D x H). | 385x190x180 |
| Product weight (kg). | 1.385 |
