Product Description
Processor / System Bus
1 x Socket LGA4677
Intel® Xeon® W-3400 & W-2400 Series Processors
* Refer to www.asus.com for the latest Intel® CPU support list
Capacity : Maximum up to 1024GB RDIMM
Memory Type : Quad Channel DDR5 4800/4400 MHz, ECC RDIMM
Memory Size : 128GB, 64GB, 32GB, 16GB RDIMM
Location-1: PCIe x16 slot (Gen 5.0 x16 link)
Location-2: PCIe x16 slot (Gen 5.0 x16 link)
Location-3: PCIe x16 slot (Gen 5.0 x16 link)
Location-4: PCIe x4 slot (Gen 4.0 x4 link)
Location-5: PCIe x16 slots (Gen 5.0 x16 link)
Storage Controller :
Intel® W790 Chipset
-4 x SATA3 6Gb/s ports
-1 x M.2_1 socket3, up to 22110 type (PCIe Gen4 x4 link), from PCH
-1 x M.2_2 socket3, up to 2280 type (PCIe Gen4 x4 link), from PCH
-SlimSAS_1 slot supports PCIe 3.0 x4 mode NVMe device
-SlimSAS_2 slot supports PCIe 4.0 x4 & SATA mode device
* Supports Intel® Virtual RAID on CPU (Intel® VROC) and Intel Volume Management Device (Intel®VMD)
** Intel® VROC Technology supports PCIe/SATA RAID 0/1/5/10.
3 x Internal 3.5" Drive bays
2 x Internal 2.5" Drive bays
Supports Up to 2 2-slot NVIDIA® graphics cards, including but not limited to
NVIDIA® RTX 6000 ADA, 48GB GDDR6
NVIDIA® RTX 4000 ADA, 20GB GDDR6
NVIDIA® RTX A4000, 16GB GDDR6
NVIDIA® RTX 2000 ADA, 16GB GDDR6
NVIDIA® RTX A2000, 12GB GDDR6
NVIDIA® A1000, 8 GB GDDR6
NVIDIA® T1000, 4 GB GDDR6
NVIDIA® A400, 4 GB GDDR6
NVIDIA® T400, 4 GB GDDR6
*** Pro ET700I W7 does not include integrated graphics capability. A discrete graphics card is required for
display output.
**** To ensure optimal stability, an ambient temperature of under 25°C is recommended during heavy workloads.
1 x USB 20 Gbps Type-C® port
2 x USB 5 Gbps ports
2 x USB 2.0 port
1 x Headphone port
1 x Microphone port
2 x USB 10 Gbps ports (1 port at Type A, 1 port at Type C®)
2 x USB 5 Gbps ports
4 x USB 2.0 ports
2 x LAN ports (RJ45)
1 x 7.1-channel Audio I/O ports (5+1 Audio jacks)
1 x BIOS FlashBack™ button
Front:
1 x Power Switch/LED
1 x Reset Switch
1 x HDD Access LED
1 x Fan Speed Switch ( Full speed/by fan profile setting)
Back:
1 x BIOS FlashBack

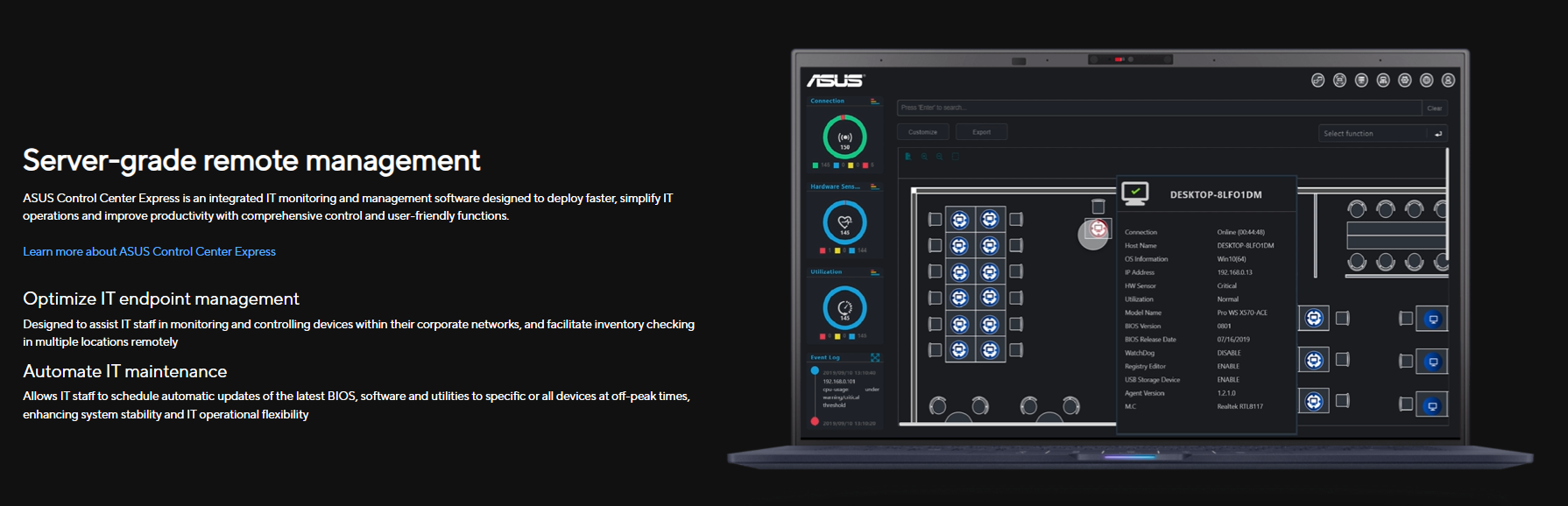

ASUS Control Center Express support
Intel® vPro support
BSMI, CE, FCC, Energy Star
535mm x 230mm x 448mm
21.06" x 9.06" x 17.64"
Net Weight : 14.28kg
Gross Weight : 21.38kg
750W 80PLUS GOLD Single Power Supply, 100-240V, 9-4.5A, 50/60Hz, Class I
1300W 80PLUS Platinum Single Power Supply, 110-240Vac, 15-7A, 50/60Hz, Class I
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
