Product Description
- Outdoor PoE edge switch: 8 x Gigabit PoE RJ45 ports and 2 x Gigabit SFP uplink slots for cameras, APs and outdoor devices
- PoE capability: IEEE 802.3af/at compliant with up to 30W per port and a total 115W PoE power budget
- Wire-speed performance: 10/100/1000Mbps auto-negotiation and auto-MDI/MDIX on all copper ports for flexible cabling
- Easy hardware control: DIP switch configuration for PoE Auto-Check and VLAN mode without complex software setup
- Reliable data delivery: IEEE 802.3x Flow Control helps reduce packet loss for stable video and data transmission
- Rugged outdoor design: IP55 weatherproof enclosure suitable for wall, pole or cabinet mounting in harsh environments
- Electrical protection: Built-in 6KV surge and 6KV contact / 8KV air ESD protection to help guard against lightning and spikes
- Simple deployment: Unmanaged, plug-and-play operation with status LEDs for quick installation and troubleshooting
- Ideal applications: Perfect for outdoor IP surveillance, Wi-Fi coverage, gardens, courtyards and remote site networks
The LevelOne OSW-1031 is a 10-port Gigabit PoE switch designed for outdoor and harsh environments. It provides 8 x 10/100/1000Mbps PoE RJ45 ports for powering IP cameras, access points and other PoE devices, plus 2 x Gigabit SFP uplink slots for flexible fiber connectivity back to the core network. Unmanaged, wire-speed forwarding ensures simple plug-and-play deployment at the network edge.
Fully compliant with IEEE 802.3af/at, the OSW-1031 delivers a total PoE power budget of 115W, supporting up to 30W per port to meet the demands of high-power devices. Hardware DIP switches offer PoE Auto-Check and VLAN mode options, enabling basic link health monitoring and port isolation for surveillance networks without complex configuration. IEEE 802.3x Flow Control helps maintain reliable data transmission even in congested conditions.

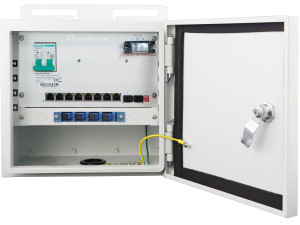

Engineered for outdoor use, the OSW-1031 is housed in an IP55-rated weatherproof box that protects against rain, dust and temperature changes. Integrated 6KV surge and ESD protection helps safeguard both the switch and connected equipment from lightning strikes and electrical interference. With included SC fiber tray space and flexible wall, pole or cabinet mounting, the OSW-1031 is an ideal solution for gardens, parking lots, campus courtyards and other outdoor PoE deployments.
