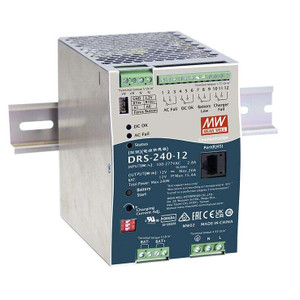

240W AC/DC DIN RAIL type security power supply series

Universal input 90~305VAC
All-in-one function with Power supply, DC-UPS, battery charger and status monitoring in ONE compact unit
Signal and alarms design meet UL2524, NFPA 1221, BS EN/EN54-4 and GB17945 requirement, with adjustable parameters configurable by communication interface
Form C relay contacts and LED indicators for AC Fail, Battery Lo, Charger Fail and DC-OK
Load-dependent high speed battery charging
Built-in MODBus protocol, CANBus optional
Protections: Short circuit/ Overload/ Over voltage/ Over temperature (auto derating)/ Battery reverse polarity )No damage)/ Battery cut off
Battery low protection/ Battery reverse polarity protection
-30~70°C wide operating temperature
Cooling by free air convection
Can be installed on DIN rail TS-35/7.5 or 15
Charging curve can be set with SBP-001
20~100% Charging current adjustable by VR
2 or 3-stage selectable by DIP Switch
Suitable for lead acid and lithium-ion batteries
