Product Description
ÛÛÛÛ• 8-port 10/100Mbps M12 Connector with IP67 protection

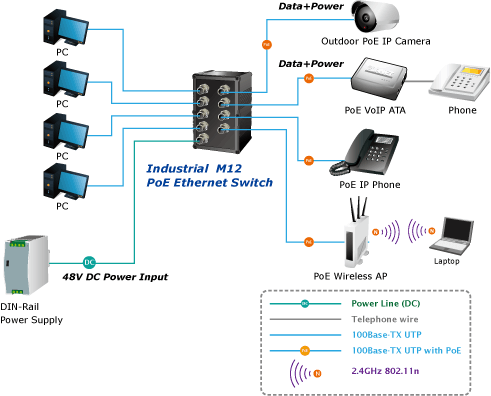

ÛÛÛÛ• 4-port IEEE 802.3af PoE Ports (Port 5 to port 8)
ÛÛÛÛ• Supports auto negotiation and 10/100Mbps half / full duplex mode
ÛÛÛÛ• High performance Store and Forward architecture, runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
ÛÛÛÛ• Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
ÛÛÛÛ• Backplane (Switching Fabric): 1.6Gbps
ÛÛÛÛ• Integrated address look-up engine, supports 2K absolute MAC addresses
ÛÛÛÛ• Automatic address learning and address aging
ÛÛÛÛ• CSMA/CD Protocol
