• Modulation frequency: 2 MHz-28 MHz
• Modulation method: OFDM
• Encryption: AES128-bit encryption
• Networking: One Master and 7 Slaves
• Protocol：IEEE802.3/u 10Base-T, 100Base-TX, IEEE802.1Q VLAN, IEEE802.3af/at
• Support Auto-sensation of MDI/ MDIX at Ethernet port, compatible with NIC, switch and HUB etc.
• Support up to 1522Bytes data packet
• Support Store and forward working mode; backpressure on Half-Duplex and flow control Full-Duplex.
• Operation temperature: -20-70℃
• Support Ethernet ESD protection and EFT

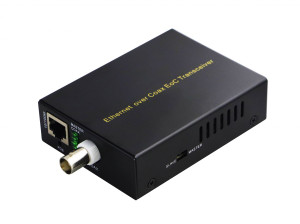

LevelOne EOC-1101 is a conversion device for Ethernet over Coax. It can be used in pair or one to multi. The equipment can transmit by BNC RG-58 Ethernet coax cable . Also have the excellent isolation and thunder prevention or anti-jamming function. In the practical project, this device is proved to be of highperformance in surge prevention. It transmits IP video or Ethernet up to 1.5km at a max rate 70Mbps over existing coax, thus cut the cost by avoid re-cabling when swapping analogue cameras for IP/Megapixel models.

EOC-1100 Kit included two EOC-1101 and 48V/60 Watt power adapter .
