Product Description
C2 Slim
Outdoor Fingerprint & Card Access Control Terminal
C2 Slim is the most compact access control device controller which suitable for installing on door frame. It is combined with biometric fingerprint and RFID Card for higher security requirement. Management with master cards, can register or delete users under offline state. The PoE TCP/IP communication will provide more convenient for your project.
| Capacity | ||
|---|---|---|
|
Fingerprint Capacity |
3,000 |
|
|
Card Capacity |
3,000 |
|
|
Log Capacity |
50,000 |
|
| Interface | ||
|
Comm. |
TCP/IP，WIFI，RS485 |
|
|
Relay |
1 Relay Output |
|
|
I/O |
Wiegand Out&In, Door Sensor, Exit Button |
|
| Feature | ||
|
Identification Mode |
FP, Card |
|
|
Identification Time |
<0.5s |
|
|
Webserver |
Support |
|
| Hardware | ||
|
CPU |
Industrial High Speed CPU |
|
|
Tamper Alarm |
Support |
|
|
Sensor |
Fingerprint Touch activation |
|
|
Scan area |
22m*18mm |
|
|
RFID Card |
Standard EM & Mifare RFID |
|
|
Size (W * H * D) |
50 x 159 x 32mm (1.97 x 6.26 x 1.26") |
|
|
Temperature |
-10°C~60°C (14°F~140°F) |
|
|
Operating Voltage |
DC 12V & PoE | |

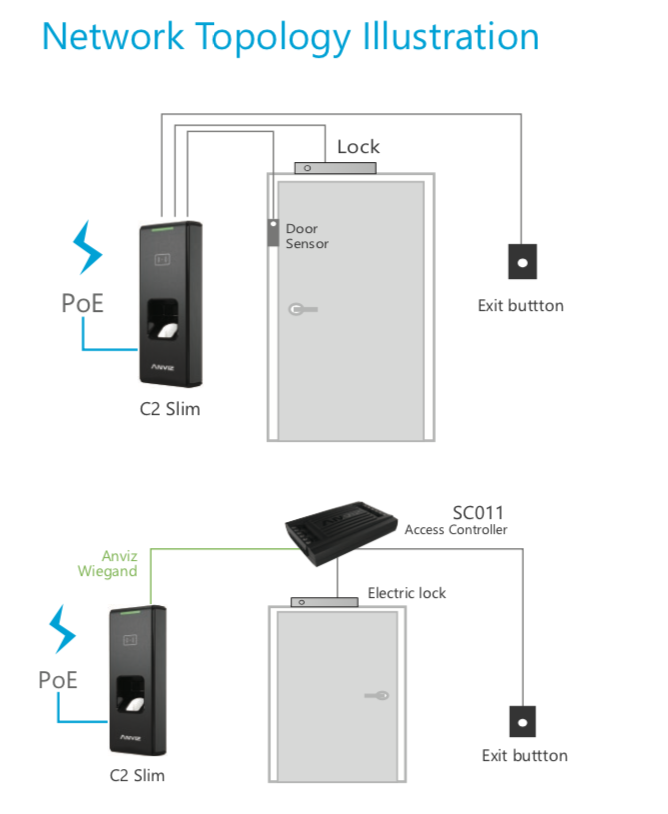

Application
