Product Description

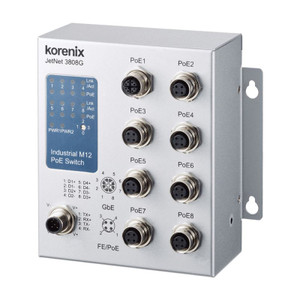

JetNet 3808G-M12 Industrial Unmanaged Booster Switch
- 1 Gigabit/PSE M12 X-code, 7 100M/PSE M12 D-code, M12-A Power
- Power feeding 15.4W/30W, compliance with IEEE 802.3af/
- Power System design with 120W budget and with
- Rugged M12 Ethernet, power connectors for vibration and shock application
- IEEE 802.1p Class of Service (CoS) for packet forwarding precedence
- 10K bytes Jumbo Frame for large file transmission
- Broadcast storm packet filtering
- Embedded DC 54V Booster
- Railway Standards: EN50155, EN50121-3-2, EN50121-4
- Traffic Standard: E-mark E13
- -40~75℃operating temperature
The JetNet 3808G-M12 is a new generation Powerover-Ethernet Switch with rugged M12 connectors. It is designed for IP Surveillance in harsh environments such as Train, MRT, and LRV systems and is equipped with 7 /PSE Fast Ethernet ports and 1 /PSE Gigabit interface. The PSE system enables 30W high power function and is with IEEE 802.3af/at standard. The switch system adapts to vehicle/railway electrical power system and supports several types of input voltage rating to correspond with different train electrical power systems. With multi-backup features, the JetNet 3808G-M12 is to construct IP Surveillance network on the train, ensure passenger's safety and improve train network reliability.
